ORIGINAL ARTICLE

[6]-Shogaol Induces Ca²⁺ Signals by Activating the TRPV1 Channels in the Rat Insulinoma INS-1E Cells

Paola Rebellato^1,2, Md. Shahidul Islam^1,3

¹Department of Clinical Science and Education, Södersjukhuset, Research Centre and ²Department of Medical Biochemistry and Biophysics; Karolinska Institutet. Stockholm, Sweden. ³Department of Internal Medicine, Uppsala University Hospital. Uppsala, Sweden

ABSTRACT

Context [6]-shogaol is a vanilloid compound present in steamed ginger (Zingiber officinale), a commonly used spice. Pancreatic beta-cells respond to nutrients like glucose, amino acids and fatty acids, by an increase in the cytoplasmic free Ca²⁺ concentration ([Ca²⁺]_i), which mediates diverse cellular processes in these cells. Some vanilloid compounds activate the transient receptor potential vanilloid receptor type 1 (TRPV1) channel. Objective We investigated whether [6]-shogaol could trigger Ca²⁺ signals in the beta-cell. Methods [Ca²⁺]_i was measured from single INS-1E cells by microscope-based fluorometry using fura-2 as the Ca²⁺ indicator. Results In fura-2 loaded single rat insulinoma INS-1E cells, a widely used model of beta-cell, [6]-shogaol increased [Ca²⁺]_i in a concentration-dependent manner. [Ca²⁺]_i increase by [6]-shogaol was completely blocked when Ca²⁺ was omitted from the extracellular medium. Capsazepine, an inhibitor of the TRPV1 ion channel completely inhibited the [6]-shogaol-induced [Ca²⁺]_i increase. [Ca²⁺]_i increase obtained by 1 µM [6]-shogaol was greater than that obtained by 10 mM glucose. Moreover, a sub-stimulatory concentration of [6]-shogaol (300 nM), significantly enhanced the glucose-induced [Ca²⁺]_i increase in these cells. Conclusion We conclude that [6]-shogaol induces Ca²⁺ signals in the beta-cell by activating the TRPV1 channels, and it sensitizes the beta-cells to stimulation by glucose.

INTRODUCTION

An increase in the cytoplasmic free Ca²⁺ concentration ([Ca²⁺]_i) is a critical signalling event that enables the pancreatic beta-cells function as “fuel sensors” [1]. These cells sense the concentration of nutrients, e.g. glucose, amino acids and fatty acids, derived from foods. The ATP-sensitive potassium channel (K_ATP), which senses an increase in the cytoplasmic [ATP]/[ADP] ratio, plays an important role in this process. Closure of the K_ATP channels leads to membrane depolarization, opening of the voltage-gated Ca²⁺ channels, and consequent increase in the [Ca²⁺]_i, which mediates diverse cellular processes [2]. Apart from the nutrients, many incretin hormones and neurotransmitters also activate beta-cells by triggering the Ca²⁺- or the cAMP-dependent signalling pathways.

Although spices are common ingredients of food, it is not known whether active ingredients derived from spices can trigger Ca²⁺ signals in the beta-cells. It is now known that several ion channels belonging to the transient receptor potential (TRP) super-family can be activated by chemicals derived from spices [3]. Transient receptor potential channel vanilloid type 1 (TRPV1) is a Ca²⁺ permeable channel that can be activated by vanilloid compounds present in many spices [4, 5]. We have shown that the insulin secreting INS-1E cells have functional TRPV1 channels [6]. [6]-shogaol is a vanilloid compound present in ginger, which is the rhizome of the plant Zingiber officinale Roscoe [7]. In this report, we have investigated the effects of [6]-shogaol on [Ca²⁺]_i in the pancreatic beta-cells.

MATERIALS AND METHODS

Cell Culture and Chemicals

We used a highly differentiated clone of rat insulinoma cells (S5 cells) derived from INS-1E cells. The cells were cultured in a medium composed of RPMI-1640, supplemented with 2 mM L-glutamine, 10 mM HEPES, 1 mM sodium pyruvate, 500 µM 2-mercaptoethanol, 2.5 % fetal bovine serum, 50 I.U./mL penicillin, and 50 μg/mL streptomycin. Cells were cultured in a humidified incubator in 5% CO₂. The medium was changed every other day and the cells were passaged by mild trypsinization once a week. For measurement of [Ca²⁺]_i, cells were cultured on glass coverslips. In single cell experiments, only cells that were round, without processes, and thus looked like differentiated beta-cells were chosen.

Fura-2 acetoxymethyl ester (98% pure) was from Invitrogen (Lidingö, Sweden). Capsazepine was from Sigma-Aldrich (Stockholm, Sweden). [6]-shogaol (1-4-hydroxy-3-methoxyphenyl-4-decen-3-one) was from ChromaDex, Inc. (Irvine, CA, USA). Cell culture materials were from Invitrogen.

Measurement of [Ca²⁺]_i by Microscope-Based Fluorometry

Cells cultured on glass coverslips were incubated in RPMI 1640 medium containing 0.1% bovine serum albumin, and 1 µM fura-2 acetoxymethyl ester for 35 min in a humidified incubator. The coverslips were then left for another 10 min at room temperature in a physiological solution containing (in mM) 140 NaCl, 3.6 KCl, 0.5 NaH₂PO₄, 0.5 MgSO₄, 1.5 CaCl₂, 10 HEPES, 3 glucose, and 0.1% bovine serum albumin (pH 7.4). Nominally Ca²⁺-free buffer was prepared by omitting Ca²⁺ from the solution and adding EGTA (0.5 mM). Coverslips were then mounted as the bottom of an open perfusion chamber on the stage of an inverted microscope (Olympus CK40, Stockholm, Sweden). The temperature within the chamber was maintained at 37°C. Single cells isolated optically by means of a diaphragm, were studied by using a 40×1.3 numerical aperture oil immersion objective (40× UV apochromatic). Cells were excited alternately at 340 and 380 nm wavelengths selected by a monochromator (DeltaRam, Photon Technology International (PTI), Inc., Birmingham, NJ, USA). The emitted light selected by a 510 nm filter was monitored by a photomultiplier tube detector. The emissions at the excitation wavelength of 340 nm (F340) and that of 380 nm (F380) were used to calculate the fluorescence ratio (R340/380). The excitation wavelengths were alternated to obtain one ratio data point per second. The fluorescence system was controlled by the Felix software (Version 1.42b, Photon Technology International (PTI), Inc., Birmingham, NJ, USA). The background fluorescence was measured, and subtracted from the traces. The [Ca²⁺]_i was calculated from R340/380 as described before [8]. R_max and R_min were determined by using thin films of external standards containing fura-2 free acid and 2M sucrose. The Kd for Ca²⁺-fura-2 was taken as 225 nM.

STATISTICS

Data are shown as mean values and standard error of mean (SEM). Student’s t-test (unpaired) was used for testing statistical significance and two-tailed P<0.05 was accepted as statistically significant. Data were analyzed by means of the SigmaPlot package (Systat Software Inc., San Jose, CA, USA).

RESULTS

[6]-Shogaol Increased [Ca²⁺]_i in the INS-1E Cells

[6]-shogaol increased [Ca²⁺]_i in the INS-1E cells in a dose dependent manner, the estimated EC50 being about 770 nM (Figure 1ab). After switching to the [6]-shogaol-containing solution, there was an initial delay of about 25 seconds because of the delay in the perfusion system. Once [6]-shogaol reached the chamber, [Ca²⁺]_i increased rapidly (within less than 5 sec) to a peak. Two patterns of [Ca²⁺]_i changes were observed. In some cells, after an increase of [Ca²⁺]_i to the peak, there was a plateau phase of elevated [Ca²⁺]_i (Figure 1a). In other cells, the plateau phase of [Ca²⁺]_i increase was missing (Figure 2b). On wash out of [6]-shogaol, [Ca²⁺]_i returned completely to the base line. These results demonstrated that [6]-shogaol increased [Ca²⁺]_i in a dose-dependent, and reversible manner in the INS-1E cells.

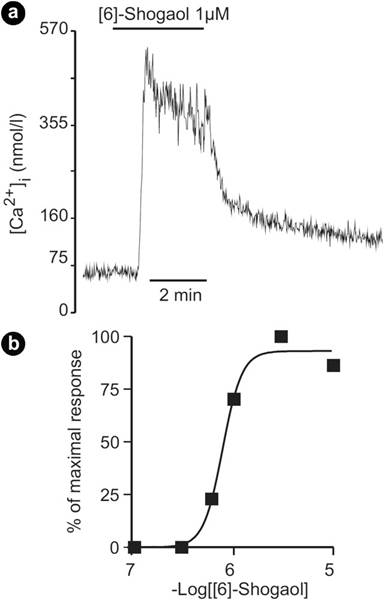

Figure 1. [6]-shogaol increased [Ca²⁺]_i in a dose-dependent manner. Effect of [6]-shogaol on [Ca²⁺]_i in the INS-1E cells was measured by microfluorometry, using fura-2 as the Ca²⁺ indicator. a. The trace shows [Ca²⁺]_i increase by [6]-shogaol (1 µM). The trace is representative of at least three experiments. b. Concentration-response curve for [6]-shogaol-induced [Ca²⁺]_i increase. Maximal increase of [Ca²⁺]_i was obtained by 3 µM [6]-shogaol. Each data point represents mean of at least three experiments.

Increase of [Ca²⁺]_i by [6]-Shogaol Was Due to Ca²⁺ Entry Across the Plasma Membrane

To test whether [6]-shogaol increased [Ca²⁺]_i by inducing Ca²⁺ entry across the plasma membrane, or by releasing Ca²⁺ from the intracellular stores, we stimulated the cells by [6]-shogaol, in the absence of extracellular Ca²⁺. Under this condition, [6]-shogaol did not increase [Ca²⁺]_i (Figures 2ab). Carbachol, an agonist of muscarinic receptors, increased [Ca²⁺]_i indicating that the intracellular stores were not empty when Ca²⁺ was omitted from the extracellular medium (Figure 2a). KCl which depolarizes the plasma membrane and thereby triggers Ca²⁺ entry through the voltage-gated Ca²⁺ channels, did not increase [Ca²⁺]_i in the absence of extracellular Ca²⁺. In control experiments, where [6]-shogaol and KCl was applied in the presence of extracellular Ca²⁺, large [Ca²⁺]_i increase was observed (Figure 2b). These results demonstrated that the [6]-shogaol-induced increase of [Ca²⁺]_i was due to Ca²⁺ entry through the plasma membrane, and not due to the release of Ca²⁺ from the intracellular Ca²⁺ stores.

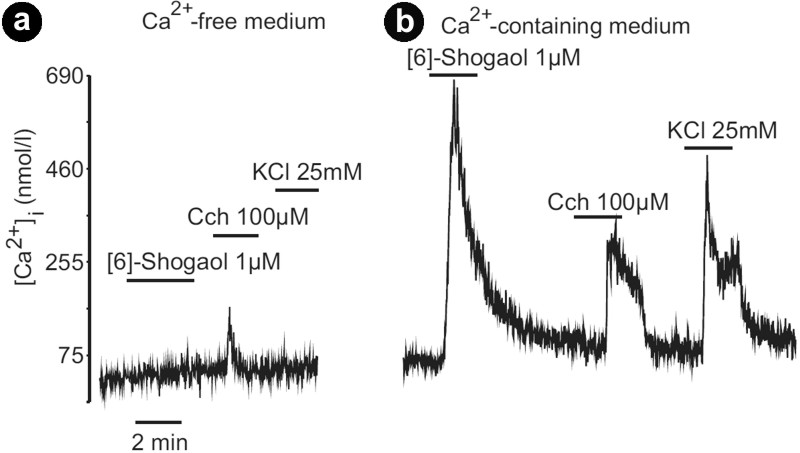

Figure 2. Extracellular Ca²⁺ was essential for [6]-shogaol-induced [Ca²⁺]_i increase. a. INS-1E cells were superfused with nominally Ca²⁺-free medium. [6]-shogaol (1 µM), carbachol (Cch, 100 µM), and KCl (25 mM) were present in the medium at times indicated by the horizontal bars. Under these conditions, [6]-shogaol failed to increase the [Ca²⁺]_i. b. Control experiment, where the extracellular medium contained 1.5 mM Ca²⁺. Traces A and B are representatives of four independent experiments.

Capsazepine Inhibited [Ca²⁺]_i-Increase by [6]-Shogaol

To test whether [Ca²⁺]_i increase by [6]-shogaol was due to the activation of the TRPV1 channels, we used capsazepine, a specific inhibitor of this channel [9]. As shown in Figure 3, capsazepine did not alter [Ca²⁺]_i by itself, but it completely blocked the [Ca²⁺]_i increase by [6]-shogaol. [Ca²⁺]_i increase by KCl was not blocked by capsazepine (Figure 3a). In control experiments, where [6]-shogaol was used without capsazepine, there was a characteristic increase of [Ca²⁺]_i (Figure 3b). These results indicated that [Ca²⁺]_i increase by [6]-shogaol was due to the activation of the TRPV1 channel.

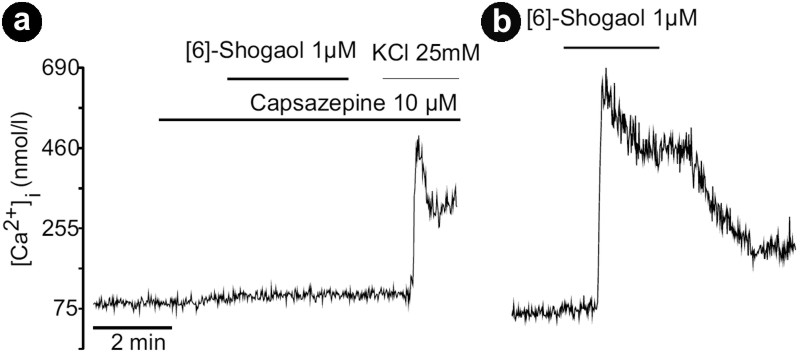

Figure 3. Capsazepine inhibited the [Ca²⁺]_i increase by [6]-shogaol. Conditions of experiments were as described in the legend to the figure 1. a. Capsazepine (10 µM) itself did not increase [Ca²⁺]_i, but it completely inhibited the [Ca²⁺]_i increase by [6]-shogaol (1 µM). At the end of the experiment KCl (25 mM) was added as a positive control. b. Control experiment, where [6]-shogaol was added in the absence of capsazepine. The traces are representatives for three experiments with similar results.

[6]-Shogaol Increased Glucose-Induced [Ca²⁺]_i Response

A low concentration of [6]-shogaol (300 nM) did not increase [Ca²⁺]_i (Figure 4a). Addition of glucose (10 mM) to the cells increased [Ca²⁺]_i by 100±30 nM (mean±SEM; n=3) (Figure 4bd). When 10 mM glucose was added in the presence of 300 nM [6]-shogaol, the magnitude of [Ca²⁺]_i increase was about three-fold more compared to that obtained in the absence of [6]-shogaol (322±62 nM, P=0.036; n=4) (Figure 4cd).

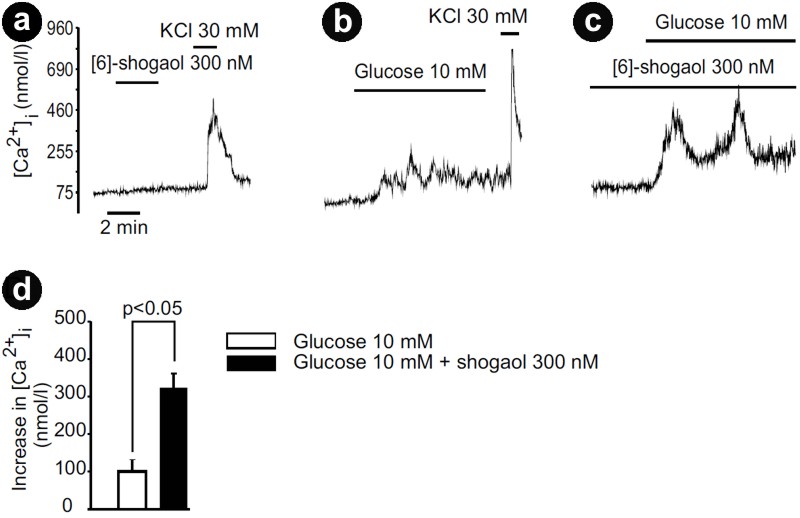

Figure 4. [6]-shogaol sensitized glucose-induced [Ca²⁺]_i response. [Ca²⁺]_i was measured from the INS-1E cells loaded with fura-2. a. [6]-shogaol (300 nM) did not increase [Ca²⁺]_i by itself. KCl (25 mM) was added as a positive control, and it increased [Ca²⁺]_i. b. Glucose (10 mM) increased [Ca²⁺]_i. c. Glucose (10 mM) was added in the presence of 300 nM [6]-shogaol, and this caused a larger increase of [Ca²⁺]_i (versus Figure 4b). d. [Ca²⁺]_i increase by glucose (10 mM) was significantly higher when the sugar was added in the presence of 300 nM [6]-shogaol. The traces are representatives of at least three independent experiments.

DISCUSSION

An increase in the [Ca²⁺]_i in the beta-cells is a hallmark of activation of these cells. In our experiments, [6]-shogaol induced a rapid and large increase of [Ca²⁺]_i in the beta-cells in a dose-dependent manner. This increase of [Ca²⁺]_i by [6]-shogaol was due to influx of Ca²⁺ across the plasma membrane, and was not due to any release of Ca²⁺ from the intracellular Ca²⁺ stores. To the best of our knowledge, this is the first demonstration of [Ca²⁺]_i increase by shogaols in any insulin-secreting cell, and our results are consistent with the [Ca²⁺]_i-increasing effect of shogaols described in other cells that express TRPV1 [10, 11]. [Ca²⁺]_i increase by [6]-shogaol was completely blocked by capsazepine, a specific blocker of the TRPV1 channel, indicating that the vanilloid compound induced Ca²⁺ entry by activating this channel. These results are consistent with a previous report that pancreatic beta-cells express TRPV1 channels [12]. Furthermore, we demonstrate that [6]-shogaol not only increased [Ca²⁺]_i by itself, but also sensitized the [Ca²⁺]_i response of the beta-cells to glucose. We speculate that sub-threshold concentration of [6]-shogaol promotes glucose-induced depolarization of the plasma membrane of the INS-1E cells by providing an inward depolarizing current through the TRPV1 channels. Thus, closure of the K_ATP channels by increased ATP/ADP ratio upon metabolism of glucose, together with the inward depolarizing currents provided by the activation of the TRPV1 channels, causes increased depolarization of the plasma membrane potential to the threshold for the activation of the L-type voltage-gated Ca²⁺ channels leading to the increase of [Ca²⁺]_i.

It is well known that nutrients increase [Ca²⁺]_i in the beta-cells by increasing the cytoplasmic ATP/ADP ratio leading to the closure of the K_ATP channels, membrane depolarization and opening of the voltage-gated Ca²⁺ channels [2]. Commonly used drugs for the treatment of type 2 diabetes, e.g. the sulphonylurea compounds, also work by blocking the K_ATP channels, and thereby increasing the [Ca²⁺]_i [2]. Our results show that high concentrations of [6]-shogaol can bypass this well known chain of events, and instead, increases [Ca²⁺]_i by a distinct mechanism. Our results illustrate that certain chemicals derived from spices may induce Ca²⁺ signals in the beta-cells by directly acting on ion channels, other than the K_ATP channels. The physiological relevance of our data obtained from the INS-1E cells is unclear since primary human beta-cells apparently do not express functional TRPV1 channels [6]. Nevertheless, the INS-1E cells can be used as a model for the study of the native TRPV1 channels in a mammalian cell line.

Received October 7^th, 2013 – Accepted November 6^th, 2013

Keywords Calcium Signaling; Insulin-Secreting Cells; Islets of Langerhans; shogaol; TRPV1 receptor

Abbreviations [Ca²⁺]_i: cytoplasmic free Ca²⁺ concentration; K_ATP: ATP-sensitive potassium channels; TRP: transient receptor potential; TRPV1: transient receptor potential vanilloid type 1

Acknowledgements This work was supported by funds from Karolinska Institutet and Uppsala County Council. Paola Rabellato was partially supported by a scholarship of the Leonardo da Vinci project Unipharma-Graduates coordinated by Sapienza University of Rome, Italy (www.unipharmagraduates.it)

Conflict of interest notification None

Correspondence
Md. Shahidul Islam
Department of Clinical Sciences and Education, Södersjukhuset
Karolinska Institutet
Stockholm South Hospital
SE-118 83 Stockholm
Sweden
Phone: +46-70.259.3446
Fax: +46-8-616.32.87
E-mail: shahidul.islam@ki.se

References

1. Islam MS. TRP Channels of Islets. Adv Exp Med Biol 2011; 704:811-30. [PMID 21290328].

2. Islam MS. Calcium signaling in the islets. Adv Exp Med Biol 2010; 654:235-59. [PMID 20217501].

3. Nilius B, Owsianik G. The transient receptor potential family of ion channels. Genome Biol 2011; 12:3-11. [PMID 21401968].

4. Szallasi A, Cortright DN, Blum CA, Eid SR. The vanilloid receptor TRPV1: 10 years from channel cloning to antagonist proof-of-concept. Nat Rev Drug Discov 2007; 6:357-72. [PMID 17464295].

5. Dedov VN, Tran VH, Duke CC, Connor M, Christie MJ, Mandadi S, et al. Gingerols: a novel class of vanilloid receptor (VR1) agonists. Br J Pharmacol 2002; 137:793-98. [PMID 12411409].

6. Jabin-Fågelskiöld A, Kannisto K, Bostrom A, Hadrovic B, Farre C, Eweida M, Wester K, Islam MS. Insulin-secreting INS-1E cells express functional TRPV1 channels. Islets 2012; 4:56-63. [PMID 22274646].

7. Morita A, Iwasaki Y, Kobata K, Yokogoshi H, Watanabe T. Newly synthesized oleylgingerol and oleylshogaol activate TRPV1 ion channels. Biosci Biotechnol Biochem 2007; 71:2304-7. [PMID 17827682].

8. Gustafsson AJ, Ingelman-Sundberg H, Dzabic M, Awasum J, Nguyen KH, Östenson CG et al. Ryanodine receptor-operated activation of TRP-like channels can trigger critical Ca²⁺ signaling events in pancreatic beta-cells. FASEB J 2005; 19:301-3. [PMID 15572434].

9. Bevan S, Hothi S, Hughes G, James IF, Rang HP, Shah K, et al. Capsazepine: a competitive antagonist of the sensory neurone excitant capsaicin. Br J Pharmacol 1992; 107:544-52. [PMID 1422598].

10. Riera CE, Menozzi-Smarrito C, Affolter M, Michlig S, Munari C, Robert F, et al. Compounds from Sichuan and Melegueta peppers activate, covalently and non-covalently, TRPA1 and TRPV1 channels. Br J Pharmacol 2009; 157:1398-409. [PMID 19594761].

11. Iwasaki Y, Morita A, Iwasawa T, Kobata K, Sekiwa Y, Morimitsu Y, et al. A nonpungent component of steamed ginger--[10]-shogaol--increases adrenaline secretion via the activation of TRPV1. Nutr Neurosci 2006; 9:169-78. [PMID 17176640].

12. Akiba Y, Kato S, Katsube KI, Nakamura M, Takeuchi K, Ishii H, et al. Transient receptor potential vanilloid subfamily 1 expressed in pancreatic islet beta cells modulates insulin secretion in rats. Biochem Biophys Res Commun 2004; 321:219-25. [PMID 15358238].
