CASE REPORT



JOP. J Pancreas (Online) 2012 May 10; 13(3):285-288.





Laparoscopic Spleen-Preserving Distal Pancreatectomy Followed by Intramuscular Autologous Islet Transplantation for Traumatic Pancreatic Transection in a Young Adult





Sabrina Dardenne1, Adrien Sterkers2, Christophe Leroy3, Laurent Da Mata4, Philippe Zerbib1, François-René Pruvot1, François Pattou2, Stéphanie Truant1





Departments of 1Digestive Surgery and Transplantation, 2Endocrine Surgery, 3Medical Imaging, and 4Anesthesiology; CHU, Univ Nord de France. Lille, France





ABSTRACT

Context Pancreatic injuries caused by blunt trauma are often treated conservatively, except for the highest grades of these. Case report We report a case of complete transection of the distal pancreas in a young adult which was successfully managed by spleen-preserving laparoscopic distal pancreatectomy followed by an islet autotransplantation in the patient’s forearm striated muscle. Conclusion We describe a mini-invasive approach for pancreatectomy with restoration of resected islets to the patient.





INTRODUCTION



Pancreatic injury occurs in 12% of abdominal trauma [1] while the reported incidence in blunt trauma is between 0.2 and 5% [2, 3]. Isolated pancreatic injury in such circumstances is unusual. The benefit of early surgical management has previously been demonstrated for injuries with duct transection [4]. Laparoscopic distal pancreatectomy is a well reported procedure that may provide better postoperative outcome and esthetic result [5]. But only few case-reports or small series describe this approach for pancreatectomy following traumatic injury, and mostly in the pediatric population [4, 6, 7, 8, 9]. We report a case of successful laparoscopic distal pancreatectomy for a complete transection of the left pancreas in a young adult who subsequently benefited from an islet autotransplantation with mini-invasive approach.



CASE REPORT



In the resuscitation room of our centre we received a 24-year-old man without any previous medical history, after a road traffic accident. He fell of his motorcycle with unclear circumstances; he did not remember the event because of an alcohol abuse. Assessment in emergency room revealed stable hemodynamic signs but a marked tenderness with focalized guarding in the epigastric region. There were diffuse contusions of the thoracic and abdominal wall. The rest of the clinical examination was normal. Laboratory analysis indicated a ten-fold increase of liver enzymes and elevated lipases at 337 U/L (reference range:10-150 U/L). Thoracoabdominal computed tomography (CT) showed a hemoperitoneum, a moderate contusion of the left liver, and a complete fracture between the body and the tail of the pancreas (Grade III) [10] (Figure 1).

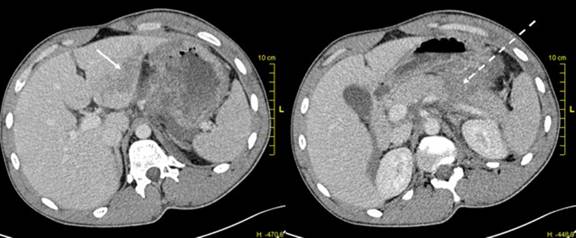

Figure 1. CT scan showing a moderate contusion of the left liver (arrow), and a complete fracture between the body and the tail of the pancreas with an hematoma in front of the splenic vein (dotted arrow).





We performed a laparoscopic exploration the following day. The trocars were placed as following: a supra-umbilical 10 mm port, and three 5 mm ports in the left subcostal region, the right hypochondrium, and below the xyphoid appendix. The abdominal exploration disclosed a minimal hepatic contusion of the left lobe without active bleeding, the absence of associated hollow viscus injury, and a moderate hemoperitoneum. Then, the lesser sac was opened through the gastrocolic ligament, preserving the short gastric vessels, but especially the left gastroepiploic artery, which represents the main collateral vasculature in case of spleen preservation with splenic vessels resection [11, 12]. The pancreas was shown to be transected entirely at the level of its tail, with significant peripancreatic hematoma and inflammation. The splenic vein was identified deep behind the pancreas (Figure 2). We could perform a totally laparoscopic distal pancreatectomy with spleen and splenic vessels preservation. The proximal main pancreatic duct was oversewn with 4-0 Monocryl® (Ethicon, Inc., Somerville, NJ, USA), with no further treatment of the proximal pancreatic margin. We placed a Penrose drain near the head of the pancreas. The resected piece was removed in a bag, by a short Pfannenstiel laparotomy (Figure 3). Indeed, it was necessary not to damage the tail of the pancreas, which was subsequently treated for islets isolation.





Figure 2. Operative view with the body of the pancreas (arrow) separated of the tail (thick arrow), and the splenic vein in depth (white arrow).





Figure 3. The tail of the pancreas was removed by a short over pubic laparotomy.





One day later, the patient could benefit from an islet autotransplantation in the left forearm under local anesthesia, as previously described in the literature [13, 14, 15]. The early postoperative outcome was uncomplicated, without pancreatic leak. The patient was discharged after nine days.



DISCUSSION



The management of pancreatic trauma largely depends on the presence of duct disruption and other concomitant injuries [6]. Endoscopic retrograde cholangiopancreatography (ERCP) can evaluate the ductal integrity, but we did not perform this exam because of the rather important suspicion of complete pancreatic transection on CT scan. Grade III involving the distal pancreas and the main pancreatic duct was diagnosed according to the Association for the Surgery of Trauma (AAST) injury scale (grade III to V sign a major injury) [10]. The traditional management approach for major pancreatic trauma at the level of neck, body, and tail is open exploratory laparotomy and distal pancreatectomy [6]. More recently, laparoscopic surgery has been applied in such a context, by analogy with pancreatectomies for other conditions, although mainly reported in the pediatric population [5]. In our 24-year-old patient, we chose laparoscopic approach because we expected a simplified dissection due to the complete transection and the magnified visualization offered by this procedure. However, these advantages could have been counterbalanced by risks relative to local conditions such as surrounding hematoma and inflammation. Furthermore, the treatment of the proximal pancreatic margin may be more difficult by laparoscopic approach. In the literature, the reported complications rate after surgical treatment of pancreatic trauma range between 26 and 86% [6], including pancreatic fistula in 8 to 30% [8]. This rate is similar after open versus laparoscopic approach [8]. But laparoscopy provides a shorter hospital length of stay and a faster recovery [4, 6, 8]. Our patient was discharged after nine days. Actually, he roamed in the hospital’s corridors waiting impatiently a return to home from the fifth day, but he had to remain for control imaging examinations because of his hepatic contusion. Another important point of the discussion concerning partial pancreatectomies is after-effects as the onset of diabetes. The real incidence of the postoperative endocrine dysfunction is poorly evaluated in the literature. Some series reported this complication after pancreatectomy for miscellaneous indications [16, 17]. The risk of diabetes after trauma is related to the volume reduction of the gland, and is more frequent after distal pancreatectomy than in other partial resection like central pancreatectomy [18], due to a greater concentration of islets cells in the tail [19]. Al-Ahmadi et al. [20] collected data about 25 patients with pancreatic trauma, 6 of 13 operated patients required a distal pancreatectomy and the others 12 were conservatively managed. The overall reported endocrine deficiency was 16% after a five-year follow-up [20]. So, we decided to restore to the patient his islets, which otherwise would have been lost. In the literature an abundance of data is found about islet cell transplantation, but few concerning this procedure in case of traumatic pancreatic injury. Jindal et al. [21] reported a case of total pancreatectomy after gunshot wound and Garraway et al. [2] two cases of distal pancreatectomy after road crash and stab wound, but they made islet re-implantation in the portal vein, the most common site of injection nowadays. The choice of striated muscle as graft recipient site (successfully tested on rats) provides a less invasive procedure, a probably better engraftment (less islet destruction in the portal circulation), and an easy removal if necessary [22].



CONCLUSION



We described a successful laparoscopic spleen-preserving distal pancreatectomy for abdominal injury with complete pancreatic duct transection. We took a special care of the removed piece to allow it to be restored to the patient in the form of intramuscular autologous islet transplantation.





Received December 28th, 2011 - Accepted January 20th, 2012



Key words Islets of Langerhans Transplantation; Pancreatectomy; Spleen; Wounds and Injuries



Competing interest None



Correspondence
Sabrina Dardenne
Secrétariat de Chirurgie Digestive et Transplantation CAOB, Professeur FR Pruvot
Hôpital Claude Huriez, CHRU de Lille
Rue Michel Polonovski
F-59037 Lille Cedex
France
Phone: +33-(0)320.444.260
Fax: +33-(0)320.446.364
E-mail: sabrinadardenne@hotmail.com





Reference

1. Peitzman AB, Richardson JD. Surgical treatment of injuries to the solid abdominal organs : a 50-year perspective from the Journal of Trauma. J Trauma. 2010; 69(5):1011-21 [PMID: 21068605].

2. Garraway NR, Dean S, Buczkowski A, Brown DR, Scudamore CH, Meloche M, et al. Islet autotransplantation after distal pancreatectomy for pancreatic trauma. J Trauma. 2009;67(6):E187-9 [PMID: 20009652].

3. Levine RA, Bank MA. Traumatic transaction of the pancreas. A case of delayed presentation. JOP. 2011;12(1):47-9 [PMID: 21206102].

4. Rutkoski JD, Segura BJ, Kane TD. Experience with totally laparoscopic distal pancreatectomy with splenic preservation for pediatric trauma--2 techniques. J Pediatr Surg. 2011;46(3):588-93 [PMID: 21376217].

5. Takaori K, Tanigawa N. Laparoscopic pancreatic resection : the past, present, and future. Surg Today. 2007;37(7):535-45 [PMID: 17593471].

6. Nikfarjam M, Rosen M, Ponsky T. Early management of traumatic pancreatic transaction by spleen-preserving laparoscopic distal pancreatectomy. J Pediatr Surg. 2009;44(2):455-8 [PMID: 19231557 ].

7. Reynolds EM, Curnow AJ. Laparoscopic distal pancreatecomy for traumatic pancreatic transaction. J Pediatr Surg. 2003;38(10):E7-9 [PMID: 14577094].

8. Mukherjee K, Morrow SE, Yang EY. Laparoscopic distal pancreatectomy in children: four cases and review of the literature. J Laparoendosc Adv Surg Tech A. 2010;20(4):373-7 [PMID: 20210663 ].

9. Leva E, Huscher C, Rode H, Fava G, Napolitano M, Maestri L, et al. Management of traumatic complete pancreatic fracture in a child : case report and review of literature. Surg Tech A. 2008; 18(2):321-3 [PMID: 18373468].

10. Moore EE, Cogbill TH, Malangoni MA, Jurkovich GJ, Champion HR, Gennarelli TA, et al. Organ injury scaling, II: Pancreas, duodenum, small bowel, colon, and rectum. J Trauma. 1990; 30(11):1427-9 [PMID: 2231822].

11. Egorov VI, Yashina NI, Zhurenkova TV, Petukhova MV, Starostina NS, Zarinskaya SA, et al. Spleen-preserving distal pancreatectomy with resection of the splenic vessels. Should one rely on the short gastric arteries? JOP. 2011;12(5):445-57 [PMID: 21904069].

12. Ferrone CR, Konstantinidis IT, Sahani DV, Wargo JA, Fernandez-del Castillo C, Warshaw AL. Twenty-three years of the Warshaw operation for distal pancreatectomy with preservation of the spleen. Ann Surg. 2011;253(6):1136-9. [PMID: 21394008].

13. Christoffersson G, Henriksnäs J, Johansson L, Rolny C, Ahlström H, Caballero-Corbalan J, et al. Clinical and experimental pancreatic islet transplantation to striated muscle: establishment of a vascular system similar to that in native islets. Diabetes 2010;59(10):2569-78 [PMID: 20651296].

14. Rafael E, Tibell A, Rydén M, Lundgren T, Sävendahl L, Borgström B, et al. Intramuscular autotransplantation of pancreatic islets in a 7-year-old child: a 2-year follow-up. Am J Transplant. 2008; 8(2):458-62 [PMID: 18093267].

15. Pattou F, Kerr-Conte J, Wild D. GLP-1-Receptor scanning for imaging of human beta cells transplanted in muscle. N Engl J Med. 2010;363(13):1289-90 [PMID: 20860517].

16. Lillemoe KD, Kaushal S, Cameron JL, Sohn TA, Pitt HA, Yeo CJ. Distal pancreatectomy : indications and outcomes in 235 patients. Ann Surg. 1999; 229(5):693-8; discussion 698-700 [PMID: 10235528].

17. King J, Kazanjian K, Matsumoto J, Reber HA, Yeh MW, Hines OJ, et al. Distal pancreatecomy: incidence of postoperative diabetes. J Gastrointest Surg. 2008; 12(9):1548-53 [PMID: 18543045].

18. DiNorcia J, Ahmed L, Lee MK, Reavey PL, Yakaitis EA, Lee JA, et al. Better preservation of endocrine function after central versus distal pancreatectomy for mid-gland lesions. Surgery. 2010;148(6):1247-54; discussion 1254-6 [PMID: 21134558 ].

19. Gaia E, Salacone P. Medical complications of pancreatic resections. JOP. 2007;8(1 Suppl):114-7 [PMID: 17228143].

20. Al-Ahmadi K, Ahmed N. Outcomes after pancreatic trauma: experience at a single institution. Can J Surg. 2008;51(2):118-24 [PMID: 18377752].

21. Jindal RM, Ricordi C, Shriver CD. Autologous pancreatic islet transplantation for severe trauma. N Engl J Med. 2010;362(16):1550 [PMID: 20410526].

22. Lund T, Korsgren O, Aursnes IA, Scholz H, Foss A. Sustained reversal of diabetes following islet transplantation to striated musculature in the rat. J Surg Res. 2010;160(1):145-54 [PMID: 19394966].
